Ductless Mini-Split Installation in Morgan Hill, CA

What a ductless system is

A mini-split consists of an outdoor compressor unit connected by refrigerant lines to one or more indoor units, each of which conditions the room it's mounted in directly rather than through ducts. Because they're heat pumps, they provide both heating and cooling from the same equipment. For a broader comparison of heat pumps generally, see heat pump installation.

Single-zone vs. multi-zone systems

A single-zone system pairs one outdoor unit with one indoor head, suited to conditioning a single room or small addition. A multi-zone system connects one outdoor unit to multiple indoor heads, each with independent temperature control, which can cover several rooms or even most of a home without a shared duct system. Multi-zone systems add complexity in refrigerant piping and controls, and the outdoor unit needs to be sized for the combined demand of all connected heads.

Where ductless makes sense in Morgan Hill homes

Ductless equipment tends to solve problems that a central system can't reach efficiently: room additions built after the original ductwork was installed, converted garages, accessory dwelling units, bonus rooms over garages that run hot in summer, sunrooms, home offices, and older homes where part of the house was never ducted at all. In these cases, running new ducts back to a central air handler can be more disruptive and less effective than a dedicated ductless zone.

Ducted mini-split and compact air handler alternatives

Some manufacturers offer ducted or "concealed" mini-split air handlers that connect to a short run of ductwork serving two or three nearby rooms, rather than a wall-mounted head in each space. This can be a middle ground when a homeowner wants heat pump zoning without a visible indoor unit in every room, though it requires attic or ceiling space for the compact air handler and duct runs. Our ducted mini-split guide covers that option in detail.

Indoor head styles

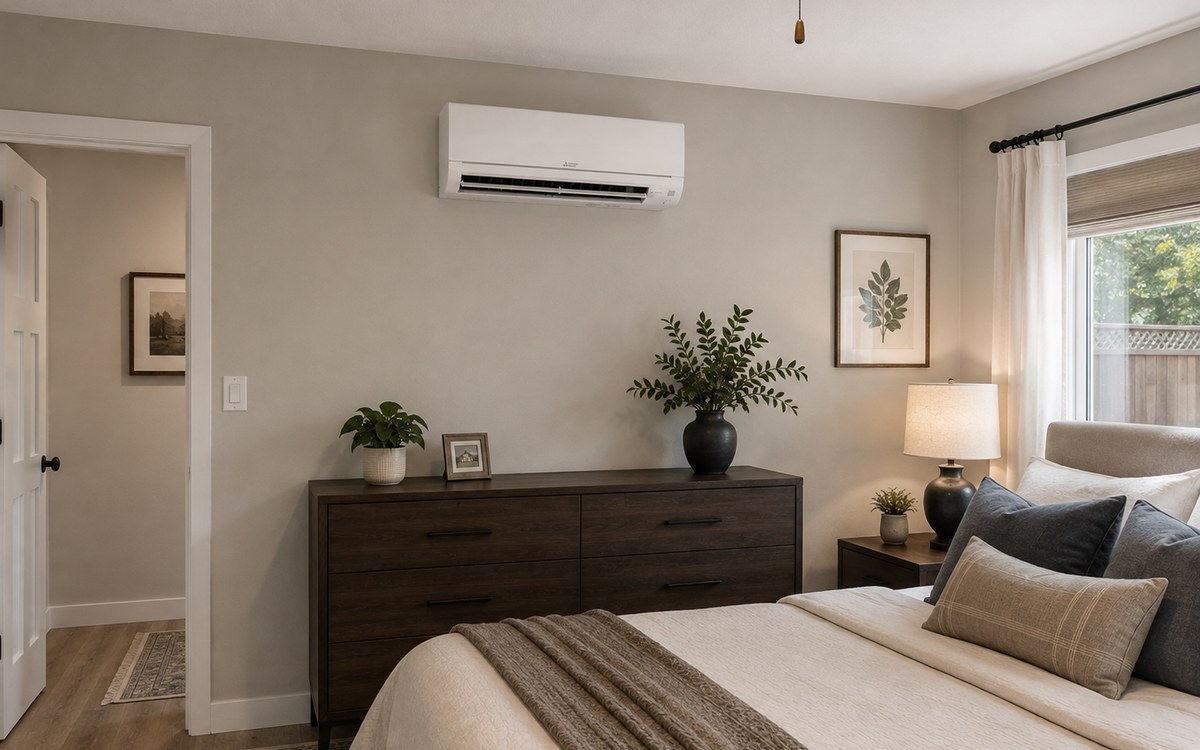

Indoor units are available as wall-mounted heads, ceiling cassettes that sit flush with the ceiling, and floor-mounted units placed near the base of a wall. The choice depends on the room's layout, ceiling height, and where furniture and windows leave room for unobstructed airflow.

Lineset routing and condensate

The refrigerant lineset connecting indoor and outdoor units typically runs through a wall penetration and is routed along an exterior wall or through an attic, depending on the layout. Indoor units also produce condensate that needs a drain line, either gravity-fed to an appropriate exit point or, when that's not possible, a small condensate pump. Both routing paths should be planned before installation, since reworking them afterward means opening finished walls or ceilings.

Outdoor unit placement and noise

Outdoor units need clearance on all sides for airflow and future service, and they should be placed with some consideration for where the sound of normal operation will be heard, particularly near a neighboring property line or a bedroom window. On smaller or semi-rural Morgan Hill lots this is worth discussing with the installer before the unit is set on its pad.

Electrical requirements

Each outdoor unit needs a dedicated electrical circuit sized to the manufacturer's specifications, and a disconnect near the unit is required. Homes with an older electrical panel that's already near capacity may need panel work to accommodate a mini-split alongside other loads; see heat pumps and electrical panel capacity for how that's evaluated.

Controls, zoning behavior, and efficiency

Each indoor head is typically controlled independently, either by a handheld remote, a wall-mounted controller, or a smart thermostat interface, which allows genuinely independent zoning rather than the compromise of a single thermostat serving a whole floor. Mini-splits are also inverter-driven, meaning they modulate output rather than cycling fully on and off, which tends to produce steady comfort and quieter operation. Filters require periodic cleaning, and like any heat pump, the system benefits from occasional professional maintenance.

When a central system is the better answer

For a whole-house renovation, a home with intact and adequate ductwork already in place, or a layout where several wall-mounted heads would be visually and logistically awkward, a central ducted system, discussed on the HVAC replacement page, is often the simpler and more cost-effective path. Mini-splits are best understood as a targeted tool rather than a universal replacement for central air.
